Wintop Optics Launches YT-7761-C8 Robotic Data Acquisition Vision Lens

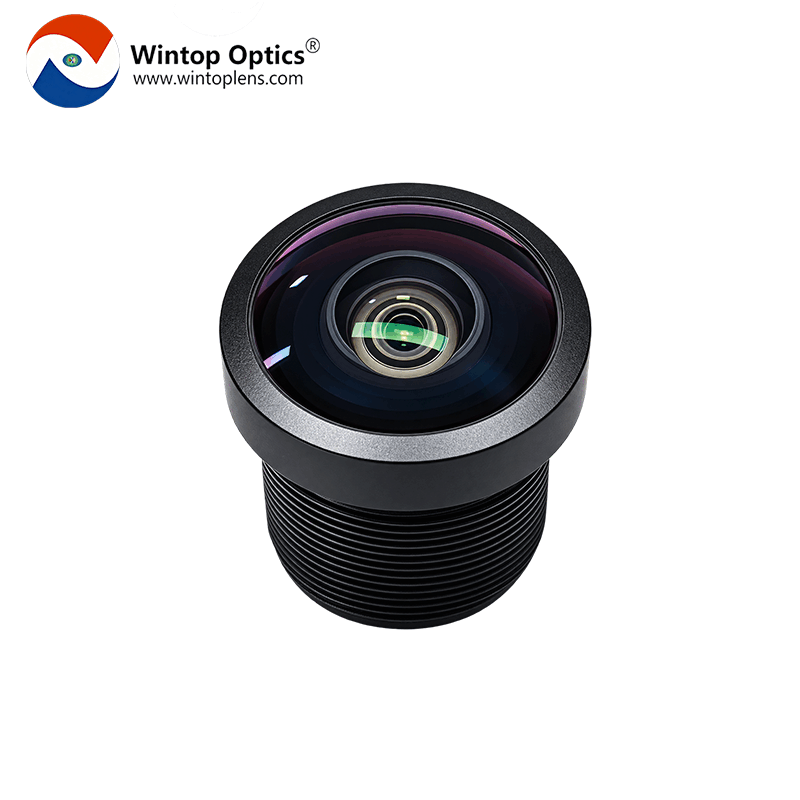

As collaborative robots, industrial robotic arms and intelligent gripping systems gain wider adoption in automated manufacturing, logistics sorting and machine vision inspection, the demand for compact, high-performance industrial optical lenses for robotic data acquisition keeps rising. To meet the stringent vision requirements of robotic end effector applications, Wintop Optics officially releases the YT-7761-C8 robotic vision lens, an ultra-wide-angle high-definition optical solution specially designed for robot grippers, robot arm wrist end mounting and multiple robotic onboard vision positions.

The YT-7761-C8 is tailored for the tough industrial working environments of robotic data collection, requiring stable imaging, ultra-broad field of view and outstanding adaptability in harsh workshop conditions. Built with F2.0 aperture optical design, this robotic data acquisition lens captures brighter, sharper images under varying lighting conditions on production lines, in warehouses and automated workcells.

Optimized for Robotic Data Acquisition Vision Systems

Robotic vision for data acquisition demands not only clear imaging but also compact structure, well-controlled distortion and rugged reliability for continuous dynamic movement. The YT-7761-C8 is developed as a professional industrial vision lens for robotic data capture, greatly improving object recognition, workpiece presence detection and scene perception accuracy for robots.

Boasting a focal length of 1.85mm and a diagonal field of view up to 189°, this robotic vision lens minimizes blind zones, helping robotic systems accurately identify workpieces, materials and surrounding obstacles. Thanks to its miniature size, it can be flexibly mounted on multiple robot positions: robot gripper / data acquisition jaw, robot arm wrist end, robot shoulder, base and chassis of AGV/AMR mobile robots. The lens fits a wide range of robotic vision applications:

• Robot gripper & data acquisition jaw visual inspection
• End-of-arm vision on collaborative & industrial robotic wrists
• Onboard environment perception on robot body and shoulder
• Automated workpiece presence check and preliminary dimension data collection
• Warehouse robotic picking & sorting vision
• AGV / AMR mobile robot close-range obstacle avoidance
• Narrow cavity & internal cabinet visual inspection
• Human-machine collaborative safety monitoring at workstation

Its optimized optical performance makes it a perfect choice for both fixed industrial robots and mobile robotic platforms.

F2.0 Aperture & Ultra-Wide Field of View for Reliable Data Capture

The core highlight of YT-7761-C8 is its F2.0 aperture optical architecture. Compared with conventional industrial lenses, it admits sufficient light to the image sensor, lifting image brightness and suppressing noise under uneven factory lighting.

For robotic data acquisition, stable image quality is critical for recognition algorithms. This industrial vision lens maintains sharp and consistent imaging during high-speed robot movement, supporting reliable workpiece detection and scene recording. The lens achieves TV distortion of -35%. It needs software distortion correction when conducting precise measurement tasks, while it delivers excellent performance for target recognition, obstacle detection and data acquisition. It adopts a 1/2.6” target sensor (1920×1200, 3μm), matching high-definition industrial sensors for clear data capture.

High Ruggedness & Wide Mechanical Compatibility

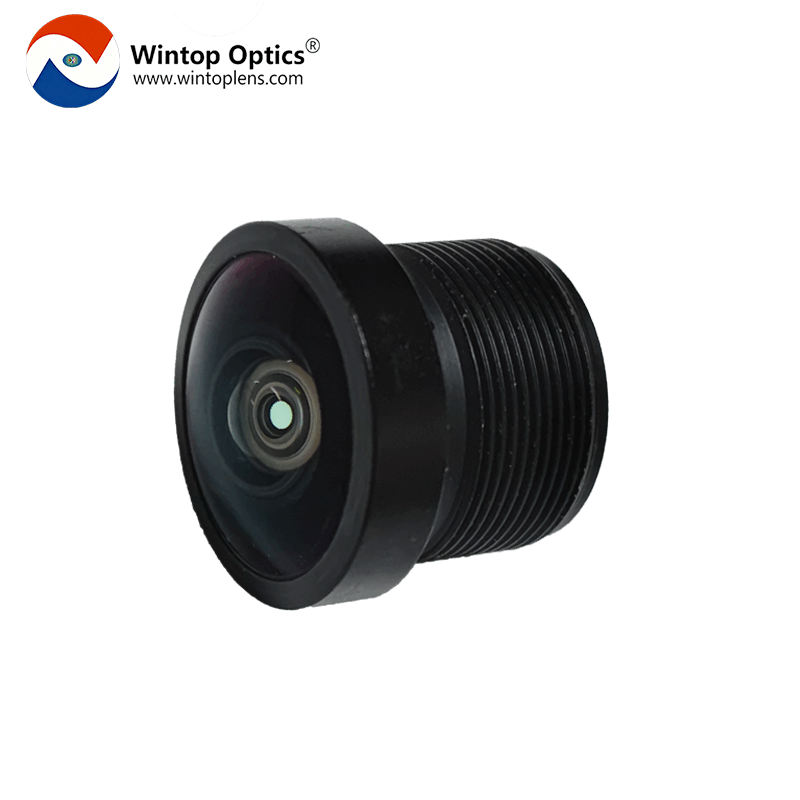

Built with M12×0.5 lens mount, the YT-7761-C8 features compact overall dimensions: Φ14mm outer diameter, optical total length 15.55mm, convenient to integrate into narrow spaces at robot wrist, gripper or other robot body positions.

The lens is ratedIP69 waterproof and dustproof, capable of stable operation in harsh industrial environments including high-pressure water washing, dust, oil mist, vibration and wide temperature fluctuations, perfectly adapting to heavy-duty factory automation and regular cleaning scenarios.

Empowering Next-Generation Robotic Vision

With industrial robots evolving toward higher precision and smarter perception, high-performance optical lenses become the core foundation for robotic data acquisition. Wintop Optics keeps focusing on delivering professional industrial optical lens solutions for global machine vision and robotic customers.

With rich R&D experience in robotic end-of-arm lenses, industrial M12 lenses, data acquisition and perception optics, Wintop Optics offers OEM & ODM customization, consistent mass production quality and flexible optical design support for robotic vision applications.

For more details about YT-7761-C8 robotic data acquisition lens or custom industrial optical solutions, please contact Wintop Optics directly.
